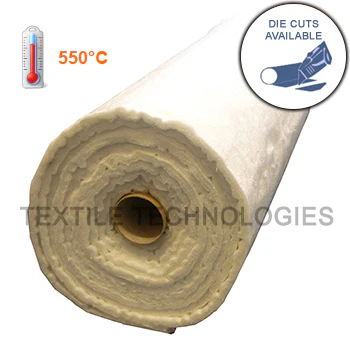

Glass Needlemat
- Glass needlemats are manufactured with cut inorganic E type glass fibres that are specially needled to produce a high volume batt.
- The needlemat has good textile characteristics, excellent mechanical resistance and thermal stability. All needle mats are incombustible.
- The needlemat is soft, voluminous, supple, easy to perforate, cut and handle.
- E Glass needlemat is the most economical, most produced and has temperature rating up to 550°C in optimum conditions.
- Various punched and die-cut pieces of needle felt can be produced according to customer requirements. Please email any CAD drawings or design instructions to sales@textiletechnologies.co.uk to enable us to quote accordingly.
Applications
- Insulation Jacket Filler
- Stress Relieving (Welding / Heat Treatment)
- High Temperature Gasket Seals
- Exhaust / Hot Pipe Insulation
- Automotive Silencer / Exhaust Infill
Enhancements
- Foils
- Adhesive Backings
Glass Needlemat Table
|
Parent Code
|
Fibre Type
|
Thickness
|
Full Product Code
|
Width
|
Roll Length
|
|---|---|---|---|---|---|
|
525-8766
|
E Glass
|
3mm
|
525-8766-03-1050-1
|
1050mm
|
50m
|
|
525-7187
|
E Glass
|
4mm
|
525-7187-04-1000-1
|
1000mm
|
50m
|
|
525-2882
|
E Glass
|
6mm
|
525-2882-06-1000-1
|
1000mm
|
40m
|
|
525-5065
|
E Glass
|
10mm
|
525-5065-10-1000-1
|
1000mm
|
30m
|
|
525-4252
|
E Glass
|
12mm
|
525-4252-12-1000-1
|
1000mm
|
20m
|
|
525-1181
|
E Glass
|
25mm
|
525-1181-25-1000-1
|
1000mm
|
10m
|
FAQs
What is E Glass needlemat?
E Glass Needlemat is a type of non-woven fabric made from E Glass fibres that are mechanically bonded together using needle-punching techniques. It is widely used in applications that require high strength, durability, and thermal resistance.
What are the key properties of E Glass needlemat?
Some key properties include:
- High strength to weight ratio
- Thermal resistance (up to 550°C)
- Chemical resistance
- Non-combustible
- Electrical insulation
- Lightweight and flexible
- Corrosion resistance
What are the common applications of E Glass needlemat?
E Glass Needlemats are used in industries like:
- Automotive (for insulation and noise reduction)
- Aerospace (for structural reinforcement)
- Construction (thermal insulation and fire protection)
- Marine (boat hulls, insulation)
- Wind energy (in wind turbine blades)
- Pipe insulation and coatings
How is E Glass needlemat different from other fibreglass mats?
E Glass Needlemats are specifically designed with E Glass fibres, which provide excellent electrical insulation and resistance to high temperatures. This makes them especially suitable for industrial applications that require durability under extreme conditions, unlike standard fibreglass mats which may have a broader range of applications but not the same specialised performance.
Is E Glass needlemat environmentally friendly?
Yes and No. E Glass is often considered environmentally friendly since it’s made from glass fibres, which are recyclable. Additionally, it doesn’t release harmful emissions during production or use, making it a preferred choice for sustainable manufacturing in many industries. However, the production of glass fibre required enormous amounts of energy when the molten sand is melted and extruded in to glass fibre.
How is E Glass needlemat supplied?
E Glass Needlemats are available in rolls or custom-cut sizes, depending on the specific requirements of the application. Thickness, weight, and surface density can also be tailored to suit particular needs.
Can E Glass needlemat be easily cut or shaped?
Yes, it is flexible and can be easily cut, shaped, or layered to fit specific needs in complex manufacturing processes or installations.
How does E Glass needlemat perform in extreme conditions?
Due to its high temperature and chemical resistance, it performs excellently in extreme conditions. It is used in environments that involve high temperatures, high stress, or exposure to chemicals, making it an excellent choice for critical industrial applications.
Why Textile Technologies Europe Ltd is the UK’s Best Supplier for E Glass Needlemat
- Industry Expertise:
- Textile Technologies Europe Ltd has a strong reputation in the industry due to its expertise in advanced textile products. They have extensive knowledge of fiberglass-based materials like E Glass Needlemat and understand the technical requirements of various industries, ensuring the best solutions for their clients.
- Customization and Quality Control:
- They provide tailored solutions for their customers, offering custom thickness, density, and sizes for E Glass Needlemat to meet specific industrial needs. Their commitment to rigorous quality control ensures that every product adheres to the highest standards.
- Extensive Product Range:
- Textile Technologies Europe Ltd offers a broad range of materials beyond just E Glass Needlemat, including other advanced textiles used in industries like automotive, aerospace, and construction. Their diverse offerings make them a one-stop-shop for companies looking to source specialised textile products.
- Sustainability Focus:
- As industries increasingly turn to more sustainable solutions, Textile Technologies Europe Ltd stands out for their focus on eco-friendly production and the recyclability of the materials they supply, including the E Glass Needlemat.
- Excellent Customer Service and Support:
- Their team offers outstanding customer service from the initial inquiry through to post-purchase support. They understand the technical specifications of the products they supply, providing expert advice and guidance to ensure the right materials are chosen for each application.
- Long-standing Reputation:
- With years of experience in supplying advanced textiles, Textile Technologies Europe Ltd has earned a reputation as a reliable, trustworthy partner for companies in need of high-performance materials. They have a proven track record of timely deliveries and consistent product quality.
- Competitive Pricing:
- Textile Technologies Europe Ltd offers competitive pricing without compromising on product quality. Their ability to source directly from manufacturers and cut out the middleman ensures customers receive the best prices for their materials.
- Global Reach and Local Service:
- While based in the UK, Textile Technologies Europe Ltd has a global supply chain and can cater to international customers. Their local service means they can offer quick responses and fast delivery times to UK customers.
- Innovation in Materials:
- The company is continually looking for innovative solutions in the textile materials space. Their investment in research and development ensures that they stay ahead of market trends, providing clients with cutting-edge materials and technology.
In short, Textile Technologies Europe Ltd excels in offering tailored, high-quality, and reliable E Glass Needlemat products backed by industry expertise and strong customer support, making them a leader in the UK market.
What is Glass Needlemat?
Glass needle mat is a high-performance insulation mat manufactured from mechanically interlocked glass fibre and E glass fibres, forming a dense and uniform structure without the use of chemical binders.
This needle-punching process ensures the needle mat maintains consistent performance while remaining flexible, lightweight, and easy to handle.
The use of E glass as the primary base material provides excellent resistance to elevated temperatures, making the glass needle mat suitable for a wide range of industrial applications.
Compared with other fiberglass and insulation fabrics, this material offers improved structural integrity and durability while maintaining ease of installation.
Thermal and Acoustic Performance
One of the key features of glass needle mat is its ability to deliver reliable thermal insulation combined with effective acoustic insulation. The interlocked structure of glass fibres creates a material with low thermal conductivity, helping to reduce heat transfer in high temperature environments.
In addition to its thermal capabilities, the needle mat also offers strong sound absorption properties, making it ideal for applications where noise reduction is required. This dual performance makes glass needle mat suitable for use in enclosures, exhaust systems and machinery insulation where both heat and sound control are critical.
The heat resistance of E glass ensures the material performs consistently across a wide range of operating temperatures, providing long-term reliability in demanding conditions.
Industrial and Automotive Applications
Due to its versatility, glass needle mat is widely used across multiple industries, including the automotive industry, construction and general manufacturing. In automotive applications, the material is commonly used for insulating exhaust systems, silencers and engine components in high performance cars.
The needle mat is also frequently used in industrial settings such as processing plants and energy facilities, where it provides effective thermal insulation for pipes, equipment and high temperature systems. Its flexible structure allows it to conform easily to complex shapes, making it highly suitable for both standard and custom insulation applications.
Because the material is lightweight yet durable, it is often selected for projects requiring a balance between performance and ease of installation.
Material Properties and Advantages
The performance of glass needle mat is driven by the unique properties of E glass and glass fibre. These materials provide excellent mechanical strength, high temperature stability and strong resistance to environmental factors such as moisture and chemical exposure.
Among the key features of this material are its durability, flexibility and consistent performance across a range of operating temperatures. The absence of chemical bonding agents ensures the needle mat remains stable at high heat without degradation.
Although minimal skin irritation may occur when handling glass fibres, simple protective measures such as wearing gloves ensure safe use during installation. Overall, glass needle mat offers a reliable and cost-effective solution for a wide range of industrial insulation requirements, delivering long-lasting performance in demanding environments.
